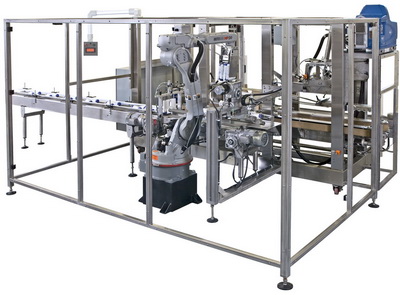

ROBOTIC CASE PACKER




Watch Video Case Packer Brochure
Watch Video SCF 20L Brochure

Watch Video





  INFORMATION:   SCF-20L CASE ERECTOR,
TOP-BOTTOM SEALER





The SCF-20 truly automates corrugate case erection and bottom taping. Innovated from leading mechanical principles and modern client needs, the SCF20 represents the most advanced case erector in its speed class. Near perfect system autonomy is the result of a precision engineered 2-side servo mechanical opening case erector. System erects and bottom seals RSC and HSC corrugated cases at a rate of up to 20 per minute. The unique servo-mechanical swing arm design not only ensures case squareness but allows for one of the smallest machine footprints within its class (50” x 80”). With a large capacity magazine (~300 cases) positioned at operator loading height (32”) loading is ergonomic and more effective.

Automatic Case Erecting OR Semi-Automatic Loading Station: 20 cases per minute
All Consolidated Technologies systems are exclusively built from stainless steel on over-rugged tubular welded platform. Design review procedures have allowed CT to streamline and simplify manufacturing while reducing costs and improving end functionality.

SCF20-L easily integrates into a fully automatic robotic top load case packing set-up.
You can use SCF20-L as a dedicated case erector or as a mobile highly efficient hand pack station as well. As loading module ROBOT requires minimal installation space and can be floor-, wall- or ceiling-mounted due to its compact design. ROBOT provides flexibility, versatility, quick and easy changeover and high performance while requiring minimal capital investment.


  • Stainless steel rigid frame
  • Small foot print
  • Easy access high capacity carton magazine
  • Cam operated case erecting system
  • Indexing system
  • Servo motor from Yaskawa
  • Omron PLC
  • HMI: color touch screen
  • Top/Bottom case seale ( tape or glue)
  • Safety cage with safety interlocks
  • Festo pneumatic components
  • Left to right or right to left
  • Adjustable legs
  • Easy change over
  • 208Volts / 3Phase; 80psi
  • Up to 20 cases per minute

FEATURES:
  • Minimal installation space
  • Wide working envelope
  • Floor-, wall- or ceiling-mounted robot
  • Ethernet and other network support

  • High-Speed
  • Versatile
  • Servo driven
  • Dual channel safety features

  • Advanced PLC control
  • JOG mode pendant
  • Password protection
  • Easy-to-use HMI menu
